Teflon Lined Butterfly Valve

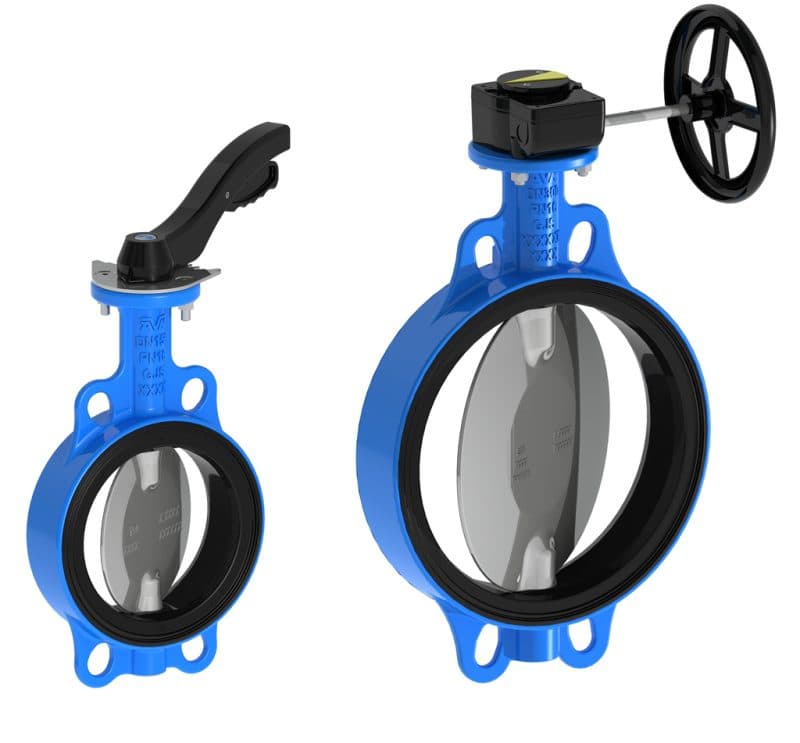

Product Description Industrial Butterfly Valves designed for efficient flow control and reliable shut-off in industrial piping systems. Featuring a compact design, lightweight construction, and easy operation, these valves provide dependable performance across a wide range of industrial applications. Available in wafer, lug, and flanged-end configurations, Butterfly Valves can be supplied with various body materials, disc materials, seat options, and operating mechanisms to meet specific process requirements. They are widely used in water treatment, chemical processing, petrochemical plants, HVAC systems, and general industrial applications. Product Specifications Valve Type - Concentric, Double Eccentric, Triple Eccentric Size Range - As per requirement Body Material - CI, DI, WCB, SS304, SS316 Disc Material - CI, DI, SS304, SS316 Seat Material - EPDM, NBR, PTFE, Metal Seat End Connection - Wafer, Lug, Flanged Operation - Lever, Gear, Pneumatic, Electric Actuator Pressure Rating - PN10, PN16, Class 150 or as specified Design Standard - API 609 / EN 593 Face-to-Face Standard - API 609 / EN 558 Testing Standard - API 598 / EN 12266-1 Temperature Range - Depends on body, seat, and design Medium - Water, Air, Oil, Gas, and Compatible Fluids Final specifications depend on the selected valve model and manufacturer's datasheet. Key Features Compact Design: Requires less installation space than many conventional valve types. Easy Operation: Quarter-turn mechanism enables quick opening and closing. Efficient Flow Control: Suitable for on/off service and flow regulation where the design permits. Multiple Material Options: Available in different materials to suit operating conditions. Flexible Actuation: Manual, gear, pneumatic, and electric operation options. Low Maintenance: Simple construction supports convenient inspection and servicing. Versatile Connections: Wafer, lug, and flanged configurations for different piping systems. Industrial Reliability: Designed for dependable service when correctly selected and installed. Applications Chemical and petrochemical industries Water treatment and wastewater treatment plants Oil and gas processing facilities Pharmaceutical manufacturing plants Power generation plants HVAC and cooling water systems Food and beverage processing, with suitable materials Industrial pipelines and process equipment Fire protection systems, where approved for the intended service

Product Description PP, HDPE, and PPRC Butterfly Valve solutions for efficient flow control and shut-off in industrial piping systems. Designed for applications requiring lightweight construction and corrosion resistance, these valves are suitable for handling compatible fluids in water treatment, chemical processing, and industrial utility systems. Available in different thermoplastic materials and configurations, these valve solutions provide practical alternatives to conventional metal valves in suitable operating conditions. Material selection depends on fluid compatibility, pressure, temperature, and piping system requirements. Product Specifications Product Name - PP / HDPE / PPRC Butterfly Valve Valve Type - Thermoplastic Butterfly Valve Body Material - Polypropylene (PP) / HDPE / PPRC, subject to design availability Disc Material - PP / HDPE / PPRC or compatible material, as per model Seat Material - EPDM / NBR / PTFE, as available Size Range - As per manufacturer End Connection - Wafer / Flanged / Compatible piping connection, depending on design Operation - Lever / Gear / Actuator, depending on model Pressure Rating - As per manufacturer datasheet Temperature Range - Depends on material grade and valve design Medium - Water and chemically compatible fluids Installation - Industrial piping systems Application - Flow isolation and control Key Features Corrosion Resistance: Suitable for many compatible fluids and chemicals. Lightweight Construction: Easier handling and installation than many metal alternatives. Low Maintenance: Designed for convenient operation and servicing. Chemical Compatibility: Material options for specific industrial fluid-handling needs. Compact Design: Suitable for installations with limited space. Flexible Operation: Manual or automated options, depending on model. Multiple Material Choices: PP, HDPE, and PPRC options subject to product availability. Cost-Effective Solution: Suitable for compatible applications where metal valves may not be necessary. Applications Water treatment and distribution systems Chemical processing plants Industrial wastewater treatment Electroplating and surface treatment plants Irrigation and utility piping Industrial fluid transfer systems Compatible acid and alkali handling Plastic piping networks in industrial facilities

A Single Piece Ball Valve is a compact, one-piece body valve designed for reliable on/off flow control . Its full-bore or reduced-bore ball mechanism provides quick operation with minimal pressure drop and good sealing performance. Typical specifications: Body : SS 304 / SS 316 / Carbon Steel Connection : Threaded / Socket Weld / Flngeded Size : 1/2 " to 4" (depending on design) Pressure : 150# / 300# or as per model Seat : PTFE / RPTFE Operation : Lever Handle Bore : Full Bore / Reduced Bore Applications : Chemical, Pharma, Petrochemical, Hydraulic, Pneumatic, Water & Industrial service

Ball Valve 2 Piece Design Flange End is a robust industrial isolation valve designed for reliable on/off flow control in process piping systems. Its two-piece body construction provides a strong, serviceable design, while the flanged ends ensure secure and leak-resistant connection to the pipeline. Typical Specifications Type: 2-Piece Ball Valve End Connection: Flanged End Body: SS 304 / SS 316 / Carbon Steel / Cast Iron Ball: SS 202 / SS 304 / SS 316 Seat: PTFE / GFT Bore: Full Bore / Reduced Bore Pressure Class: Class 150 / 300 Operation: Lever / Pneumatic Acuator Design Std. : As Per BS 5331 / API 6D Testing Std. : As Per BS 5146 / API 598 Design Std. : As Per ANSI B 16.10 Flange Std. ASME B16.5 / DIN Size: As 1/2" To 4" And As Per Your Requirement Service: Industrial fluids, water, air, oil, gas and compatible chemicals
